| الاسم التجاري: | GDS |
| رقم الطراز: | TD-1206 |
| الـ MOQ: | 1 قطعة |
| السعر: | CONTACT US |
| وقت التسليم: | 15 يوم عمل |
| شروط الدفع: | تي/تي |

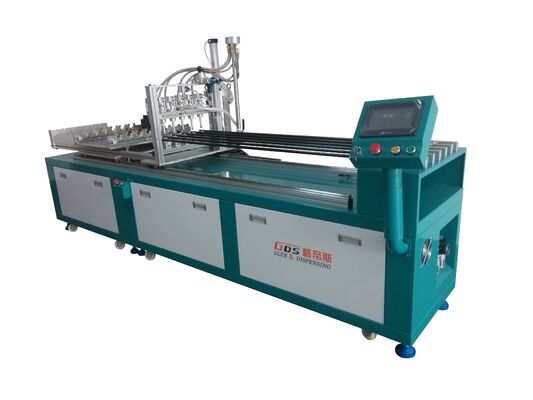

automatic silicone dispensing machine for pcb of T8 glass tube automatic glue dispenser gluing machine
Principle Description
Put six PCB strips downside on the fixture sticks. Six PCB strips on the fixture sticks are being glued while being inserted to the glass tube. The tubes press down for few seconds and stick with PCBs. The whole process is finished when the sticks are pulled out and tubes are transferred to the next work station.
Machine Feature
Technical Parameters
|
Model |
TD-1206 |
|
Working Range |
Max≤1200mm |
|
Moving Speed |
Max≤300mm/sec |
|
Repeat Accuracy |
±0.05mm |
|
Power Source |
Pressed Air+Assisting Cylinder |
|
Glue Dispensing Volume |
Depends on Glue Viscosity |
|
Glue Container capacity |
2600ml Silicone Pressure Barrel |
|
Glue Viscosity |
Max≤20000CPS |
|
Control Mode |
PLC+Touch Screen |
|
Programming |
Teaching Programming |
|
Program Capacity |
At least 100 units,4000 points/unit |
|
Transmission Mode |
Stepping Motor+Synchronous Belt+Linear Guide-way |
|
Working Pressure |
0.5-0.8Mpa |
|
Working Power |
AC220V 50HZ/2000W |
|
Working Temperature |
0-40℃ |
|
Working Humidity |
20-90% no condensation |
|
Dimension(W*D*H) |
3200*750*1550mm |
|
Weight |
About 300KG |
Suitable Glue: 2600ml single-component package for thermal conductive silicone
Applications: LED T8 glass tube

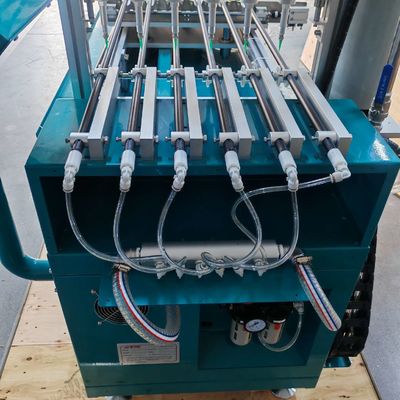

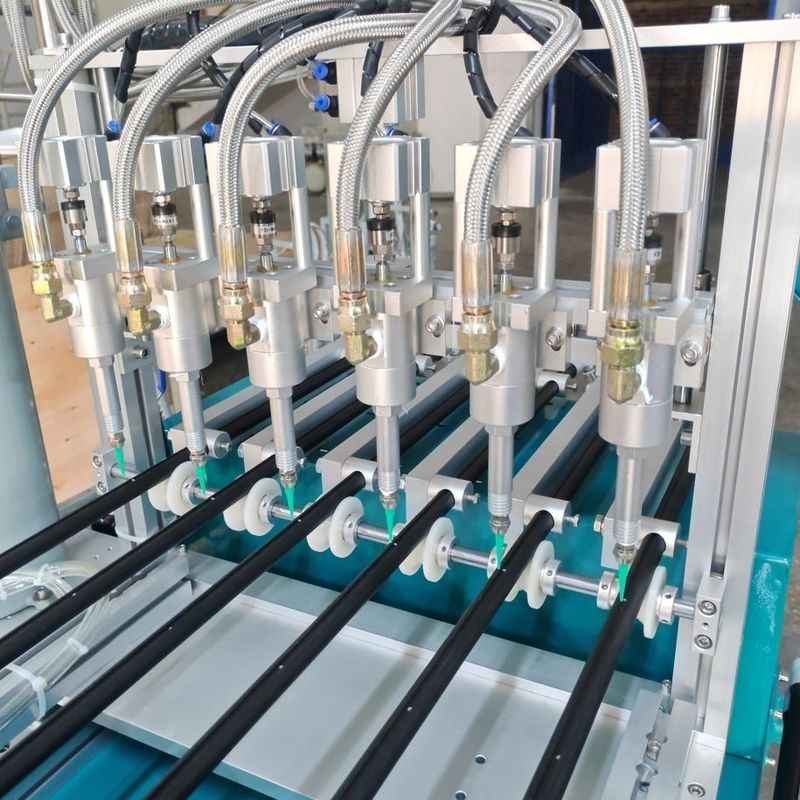

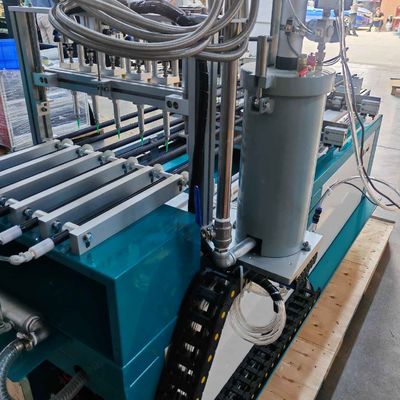

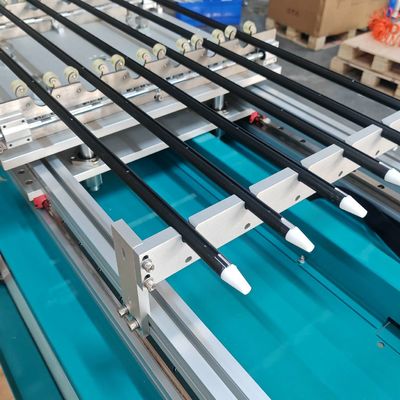

Machine Details
